Canon i-SENSYS X 1643P 3631C002

For discounts, contact us by e-mail or by filling out the form found here:

Contact Us

The set includes an original toner.

• Print Speed:

  • Single-sided (A4): Up to 43 ppm
  • Double-sided (A4): Up to 36 ipm
  • Single-sided (A5 Landscape): Up to 65.2 ppm

• Printing Method:
  Monochrome laser beam printing

• Print Resolution:
  Up to 1200 x 1200 dpi

• Warm-up Time:
  Approx. 30 seconds or less from power on (default)
  Approx. 3 seconds or less from power on (quick mode)*
  *(Change setting to quick mode is required)

• First Page Out Time:
  Approx. 5.7 seconds

• Recommended Monthly Printing Volume:
  2,000 - 7,500 pages per month

• Duty Cycle:
  Max. 150,000 pages per month*
  *(Duty cycle is defined as the maximum number of printed pages for a single peak month. Any usage above the recommended duty cycle may decrease the life of the product.)

• Print Margins:
  5 mm - top, bottom, left, and right
  10 mm - top, bottom, left, and right (Envelope)

Advanced Printing Features:

• Secure Print*
• Print from USB memory key (JPEG/TIFF/PDF/XPS)
• Barcode Print*
• Google Cloud Print Ready
• iOS: AirPrint, Canon PRINT Business app
• Android: Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

*Accessory - SD Card-C1 - is required
*Accessory - Barcode Printing Kit-F1 - is required

Media Handling:

• Paper Input (Standard):
  550-sheet cassette
  100-sheet multi-purpose tray

• Paper Input (Optional):
  550-sheet cassette x 3

• Paper Output:
  150-sheet face down

• Media Types:
  Plain paper, Heavy paper, Recycled paper, Colour paper, Bond paper, Labels, Envelopes, Post cards

• Media Sizes:

  • Cassette (Standard):
    A4, B5, A5, A5 (Landscape), A6, LTR, LGL, EXE, STMT, FLS, K16
    Custom size - width: 105.0 to 216.0 mm, length: 148.0 to 355.6 mm

  • Multi-purpose tray:
    A4, B5, A5, A5 (Landscape), A6, LTR, LGL, EXE, STMT, FLS, K16, Envelope (COM10, Monarch, DL, ISO-C5), Index card (3"x5")
    Custom size - width: 76.2 to 216.0 mm, length: 127.0 to 355.6 mm

  • Cassette (Optional):
    A4, B5, A5, A5 (Landscape), A6, LTR, LGL, EXE, STMT, FLS, K16
    Custom size - width: 105.0 to 216.0 mm, length: 148.0 to 355.6 mm

• Media Weight:

  • Cassette: 60 to 120 g/m²
  • Multi-purpose tray: 60 to 199 g/m²

Double-sided Printing:

• Automatic
• Cassette (Standard and Optional):
  A4, LTR, LGL, FLS
  Custom size - width: 210.0 to 216.0 mm, length: 279.4 to 355.6 mm
  60 to 120 g/m²

General Features:

• Power Requirements:
  220-240V (±10%) 50/60Hz (±2Hz)

• Power Consumption:
  Maximum: Approx. 1390W or less
  Active: Approx. 600W or less
  Standby: Approx. 10.1W or less
  Sleep: Approx. 1.2W or less
  Typical Electricity Consumption (TEC): 0.52 kWh/week*

*As per US ENERGY STAR® version 3.0.

• Noise Levels:
  Sound Power:
  Active: 69 dB
  Standby: Inaudible

  Sound Pressure:
  Active: 54 dB
  Standby: Inaudible

  *Declared noise emission in accordance with ISO 9296

• Dimensions (W x D x H):
  409 mm x 376 mm x 275 mm

• Weight:
  Approx. 11.5 kg

• Operating Environment:
  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity: 20 to 80% RH (no condensation)

Control Panel:

5 Line LCD, 5 LED (Online, Ready, Message, Job, and Energy saver), Buttons, 10-key numeric keypad

Controller:

• Processor Speed:
  528 MHz + 264 MHz

• Memory:
  1 GB

Printer Languages:

UFRII (Ultra Fast Rendering), PCL5e*, PCL6, Adobe® PostScript3

*Commands supported only. Third-party driver or direct printing from application required.

Fonts:

105 PCL fonts, 136 PS fonts

Interface and Connectivity:

USB 2.0 High-Speed, 10BASE-T/100 BASE-TX/1000BASE-T

Software and Printer Management:

• Remote User Interface (RUI)
• Department ID Management
• iW Enterprise Management Console: Server-based software for centralized management of a fleet of devices
• eMaintenance: Embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management, and remote diagnostics
• uniFLOW compatibility with uniFLOW Login Device Client for SFP MEAP

Operating Systems Compatibility:

Windows® 10 / Windows® 8.1 / Windows® 7 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012 / Server® 2008R2 / Server® 2008 / Server® 2003R2 / Server® 2003
Mac OS X version 10.9.5 and up / Mac OS 10.15 and up
Linux*/Citrix

*Web distribution only. Driver will be available in the second half of 2020.

Consumables:

All-in-One cartridges

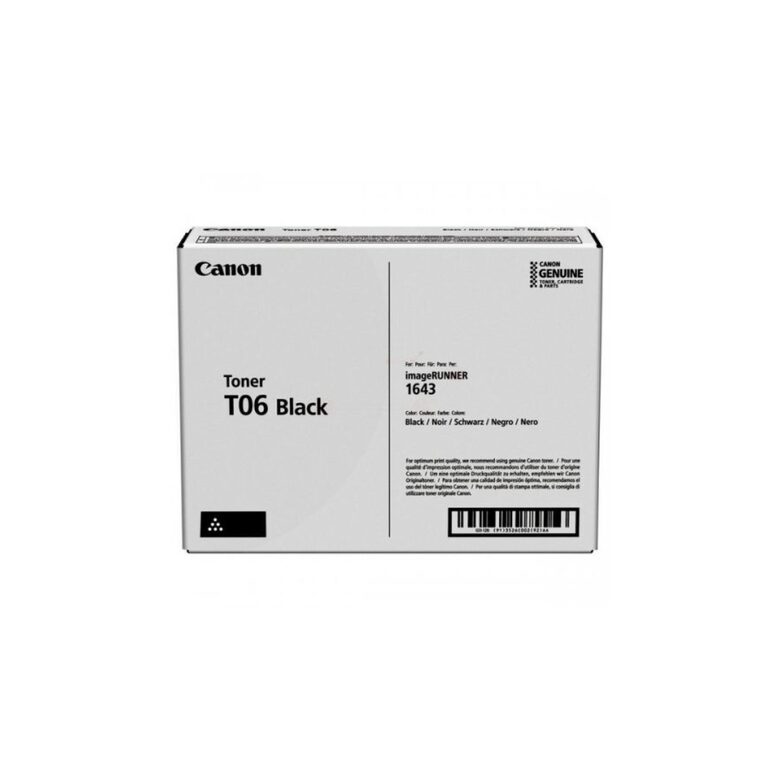

TONER T06 (20,500 pages*)

*Based on ISO/IEC 19752

Accessories / Options:

• Paper Feeder PF-C1 (550-sheet cassette) x 3
• Plain Pedestal Type-V2
• Plain Pedestal Type-AB1
• SD Card-C1 (8GB SD card memory)
• Barcode Printing Kit-F1 (Enables barcode printing capability)*
• PCL Font Set-C1 (Enables Unicode printing capability on SAP and supports Andale font)*
• MiCard Multi (Card reader for identification with RFID or magnetic cards with uniFLOW)
• MiCard Plus (Card reader for identification with RFID or magnetic cards with uniFLOW)

*Barcode Printing Kit-F1 and PCL Font Set-C1 cannot be installed at the same time.

For spare parts, please email us.
