ELMO MX-P3
For discounts, contact us by e-mail or by filling out the form found here:
Camera
Image Sensor: 1/3.06” CMOS
Effective Pixels: 13 MP (4160x3120)
Zoom: Digital x16
Frame Rate: HDMI: 4K@30fps, FHD/720P/XGA@60fps, RGB: FHD/XGA@60fps, USB: 4160x3120@15fps, 4K/FHD@30fps
Lens Max Aperture: F=2.0
Focus Range: 100 mm ~ ∞
Focus Control: Auto (One Push)
Shooting Area: 374x281mm @ 4:3 aspect
Resolution: 4K (3840x2160) via USB/HDMI
User Interface:
-
Zoom Key: Yes
-
Auto-focus Key: Yes
-
Lighting: White LED
-
Foldable Mechanical Arm: Yes
-
Adjustable Arm / Head: Yes / Yes
-
Integrated Stage: Yes (Optional)
-
Image Rotation: 0°/180°
-
Freeze: Yes
-
Annotation: Yes, via PC software
-
Comparison: Yes, via PC software
-
Mask: Yes
-
Recording: Yes (Photo/Video)
-
Optional Apps: ImageMate4 for Windows, ELMO Interactive Toolbox (EIT) for Windows and Mac
Technical Interface:
-
USB: 1 (Type-C, Version 2.0)
-
HDMI Output: 1 (Type A, Version 1.4)
-
SD Slot: 1 (Recording only, no playback)
-
AUDIO OUT: 1
-
Built-in Mic: Yes
-
Security Lock Slot: Yes
-
Power: DC 5V
-
Power Consumption: 2.5W (USB), 6W (HDMI/RGB)
Dimensions:
-
Dimensions (Folded): W290 x D82 x H22 mm
-
Dimensions (Setup): W343 x D82 x H302 mm
Weight: Approx. 460 g (Main Unit)
Accessories:
-
USB Cable, AC Adapter, Instruction Manual
Optional Accessories:
-

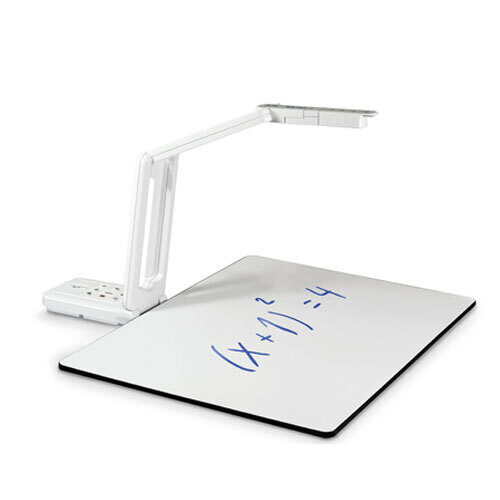

Whiteboard Stage: Yes, via PC software
-
CRA Tablet: Yes, via PC software
